Spinning impurities cutter DZS is designed for mechanical cutting of spinning impurities tangle drawn from the pulper tank (horizontal or vertical type) when waste paper is pulped. Dovetailed sliding blades guiding provides higher rigidity and easier adjustment of the cutting action. Knives are provided with replaceable blades.

Design

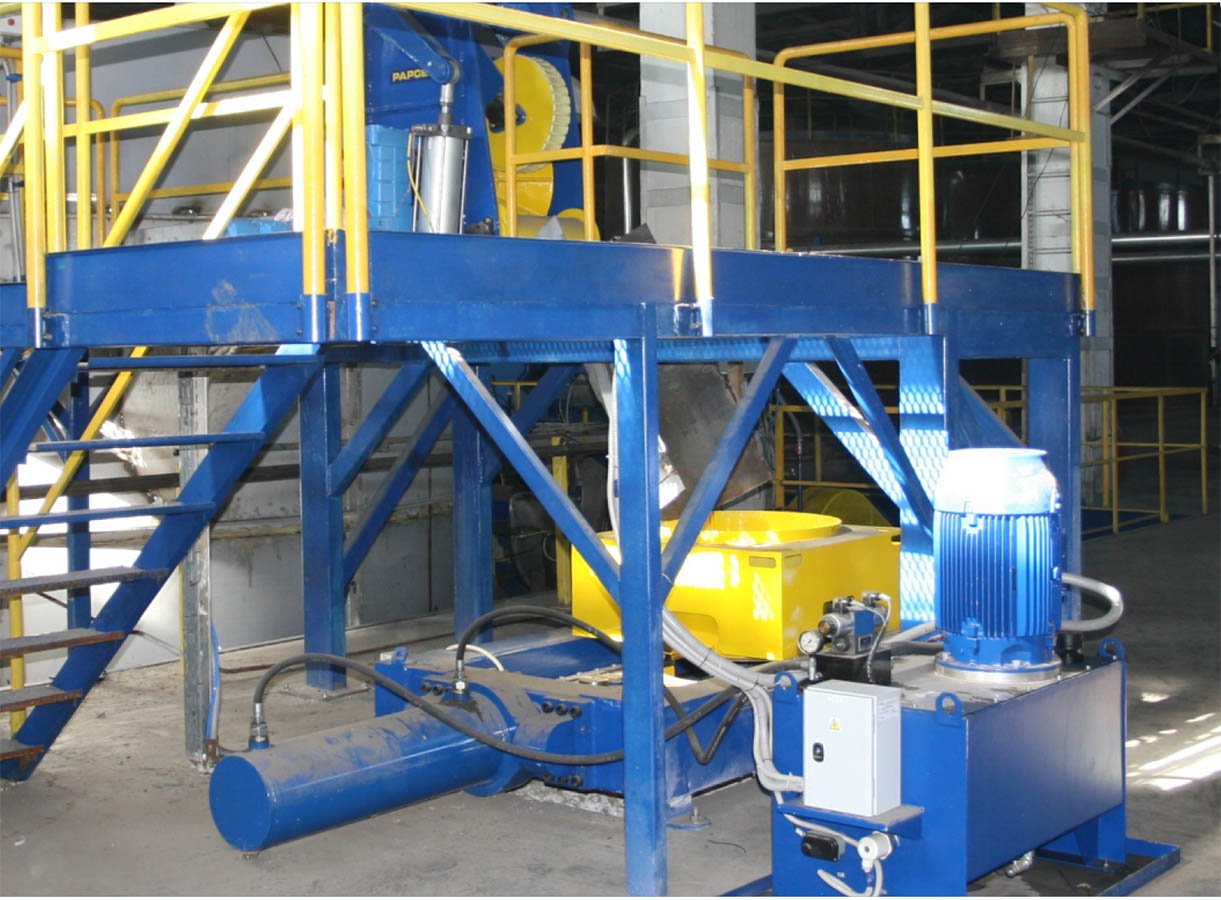

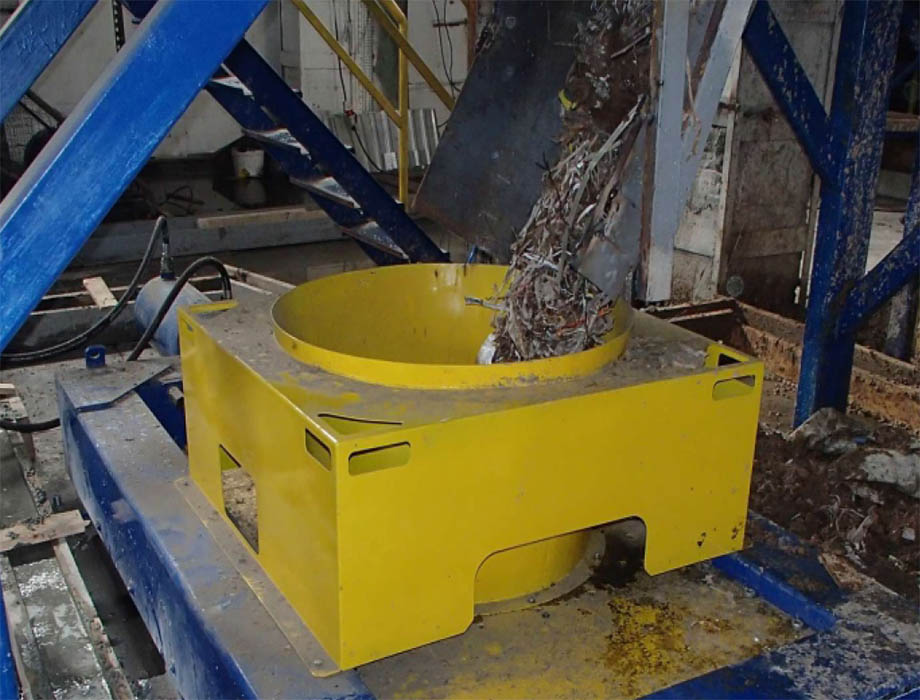

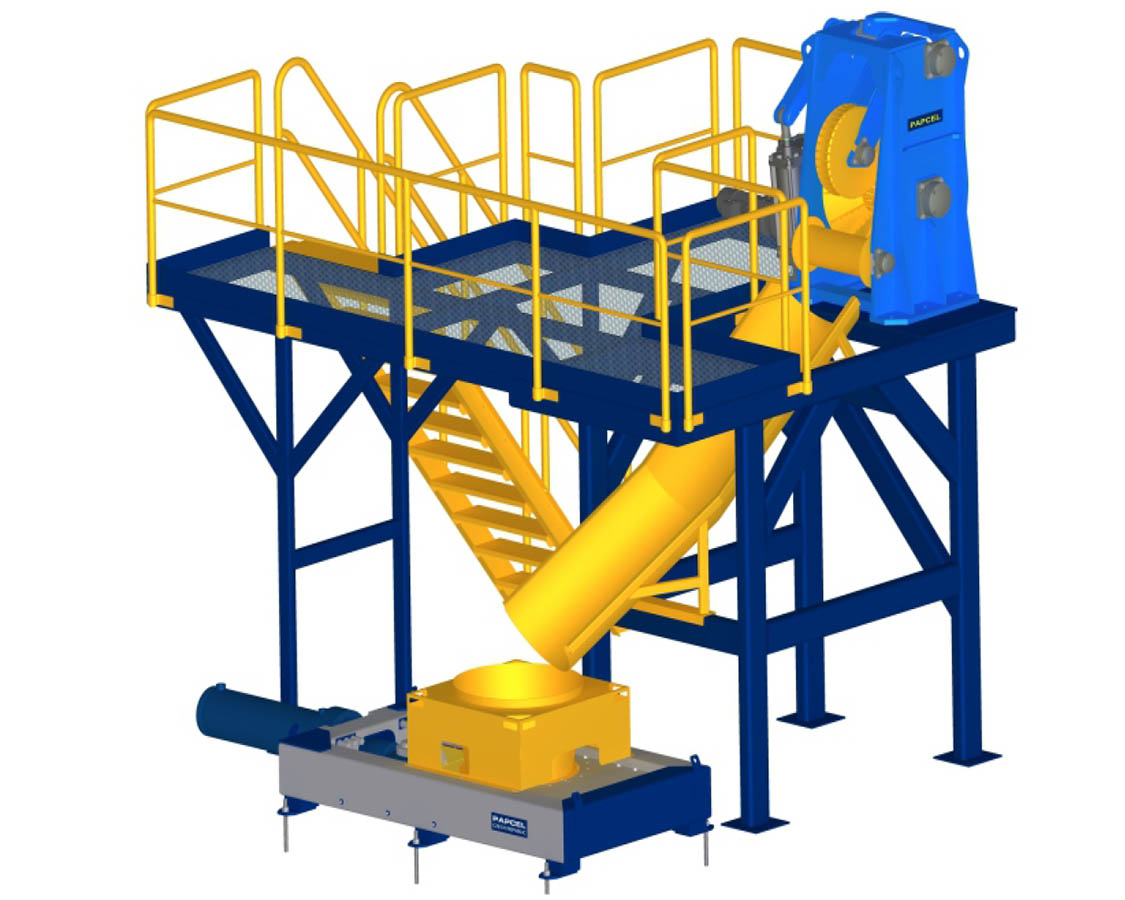

A tangle of impurities that is drawn out of the pulper tank by the ragger contains spinning impurities, such as thin wires, strands, synthetic foils, etc. This tangle of impurities is put in the hydraulic shears, between the fixed and sliding blade. The tangle is cut into pieces of required length depending on customer’s requirements. The cutting process itself is controlled by push buttons on the control board.

Machine design and work safety are in compliance with the EU standards and EAC.

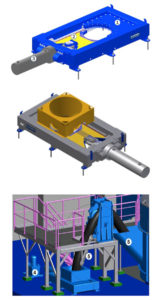

Main parts

• Hydraulic shears with knives: fixed (1) and sliding (2)
• Hydraulic cylinder(3)
• Hydraulic unit (4)
• Safety features for cutter guiding (5)
• Control board including accessories

Material

• The cutter parts are made of structural steel and protected with a high-quality coating
• Knife blades are made of special abrasion resistant steel with high hardness
• All connecting material is made of stainless steel or its surface is provided with a zinc coating
