Self Cleaning Trash Rack

Self-cleaning trash rack  is designed to separate solid floating trash (foils,polystyrene, wood, etc.) from white water dewatering devices. In the lines processing waste paper the racks are placed after the dewatering drums OBN and they prevent coarse flotates in water pits.

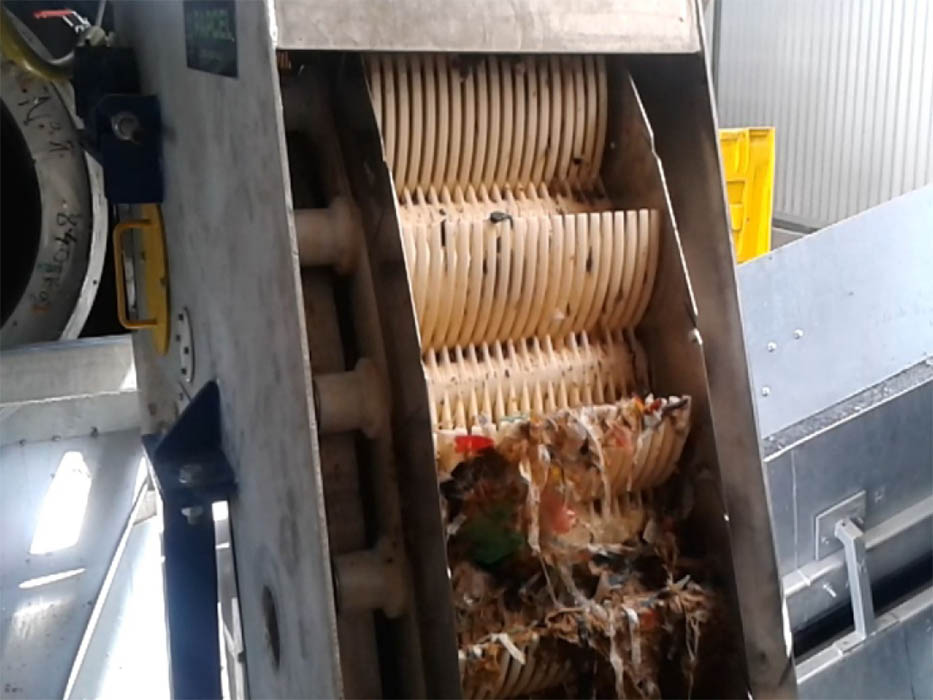

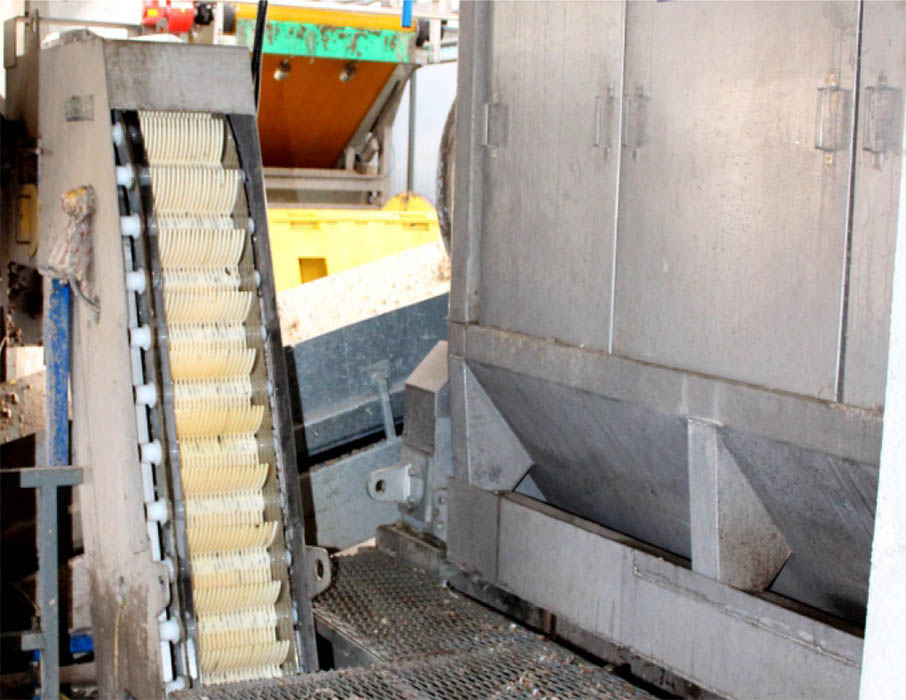

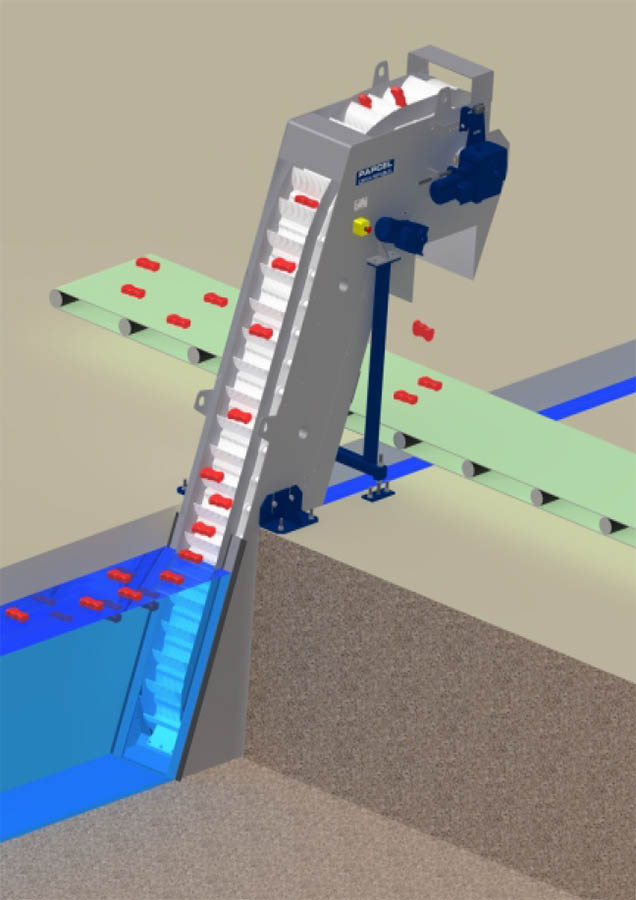

The working part is submerged in a drain between a retention vat OBN and a water pit. Polluted water flows through a moving screen belt where impurities are captured and carried out from the drain. In the top reversal point the trash falls down and the screen is cleaned by a brush. A hopper discharges the trash to a container or to a reject conveyor. The machine runs at the time intervals set according to the line parameters.

Machine design and work safety are in compliance with the EU standards and EAC.

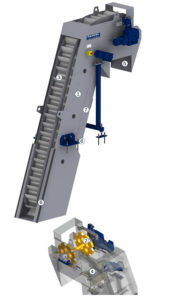

Main parts
  • Stainless frame (1)
  • Belt drive with chain wheels and electric gearbox (2)
  • Moving screen belt (3)
  • Rotating brush (4) driven by worm electric gearbox
  • Hopper (5)
  • Machine anchoring (6)
  • Covers (7)
Material
  • All machine parts coming in contact with water are made of stainless steel
  • Other parts are made of structural steel painted with double-component polyurethane coating
  • Moving screen is combined of stainless steel and plastics
  • All the joining material is made of stainless steel or is zinc coated
Advantages
  • Simple design
  • Easy maintenance and servicing
  • Self-cleaning design
  • Low energy demands
  • Category

    Cultural / Industrial
  • Length

    4 feet
  • Width

    12 feet
  • Height

    10 feet
  • Weight

    580 kg
  • Space Require

    14 sq. feet
