Reversal Centrifugal Cleaner

Reversal centrifugal cleaners VOV a VTV  belong to the family of the cleaners with a free vortex and a drainage of separated impurities into a collecting pipe. They find their use when removing very light impurities and air from the stock. The cleaners work separately or in stations.

Air centrifugal separators VOV  are designed to remove free and dispersed air from the stock in paper machine approach flow systems. Basically, they are identical to the VTV cleaners. They are of a larger-sized structure due to larger throughput volumes.

Cylindrical centrifugal cleaners VTV  are designed to high-efficiently separate stickies and very light and bulky impurities (like styrene foam particles and plastic scraps) as well as free spinnable impurities in the waste paper lines. Their parameters (performance, efficiency, etc.) put them above the conventional MOVI VO/VU cleaners. The VTV cleaners are preferentially designed to work in multi-stage stations, in special cases they may even be operated as independent units. Their advantages are high cleaning efficiency and good operation reliability. Their secondary effect is deaeration of cleaned stock. They are able to work at cleaned stock consistencies of upto1.25%

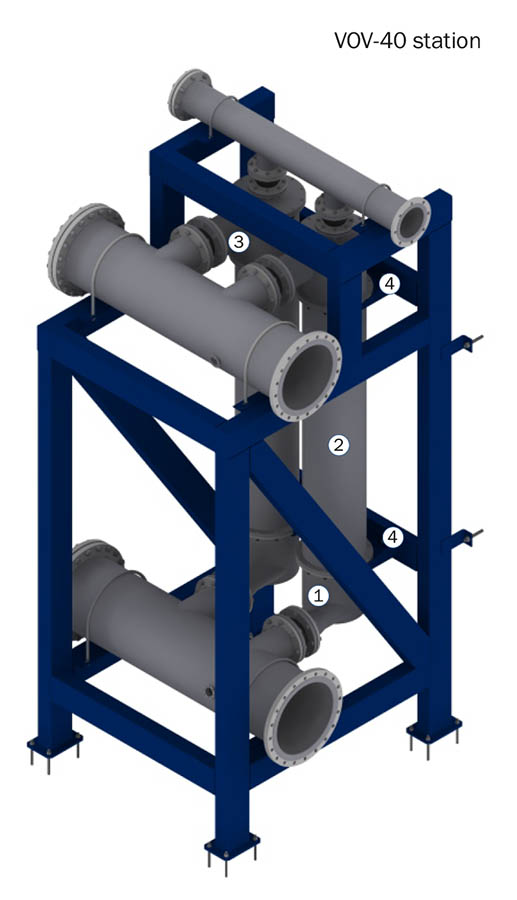

Main parts
  • Inlet part (1)
  • Work cylinder (2)
  • Outlet body (3)
  • Bracket (4)
Material
  • All machine parts coming to contact with the stock are made of stainless steel
  • Other parts are made of structural steel

Machine design and work safety are in compliance with the EU standards and EAC.

Advantages
  • Low energy demands
  • Low pressure loss
  • Low service demands
  • Long lifespan of all the parts
  • Resistance to clogging
  • High cleaning efficiency, operation flexibility and reliability
