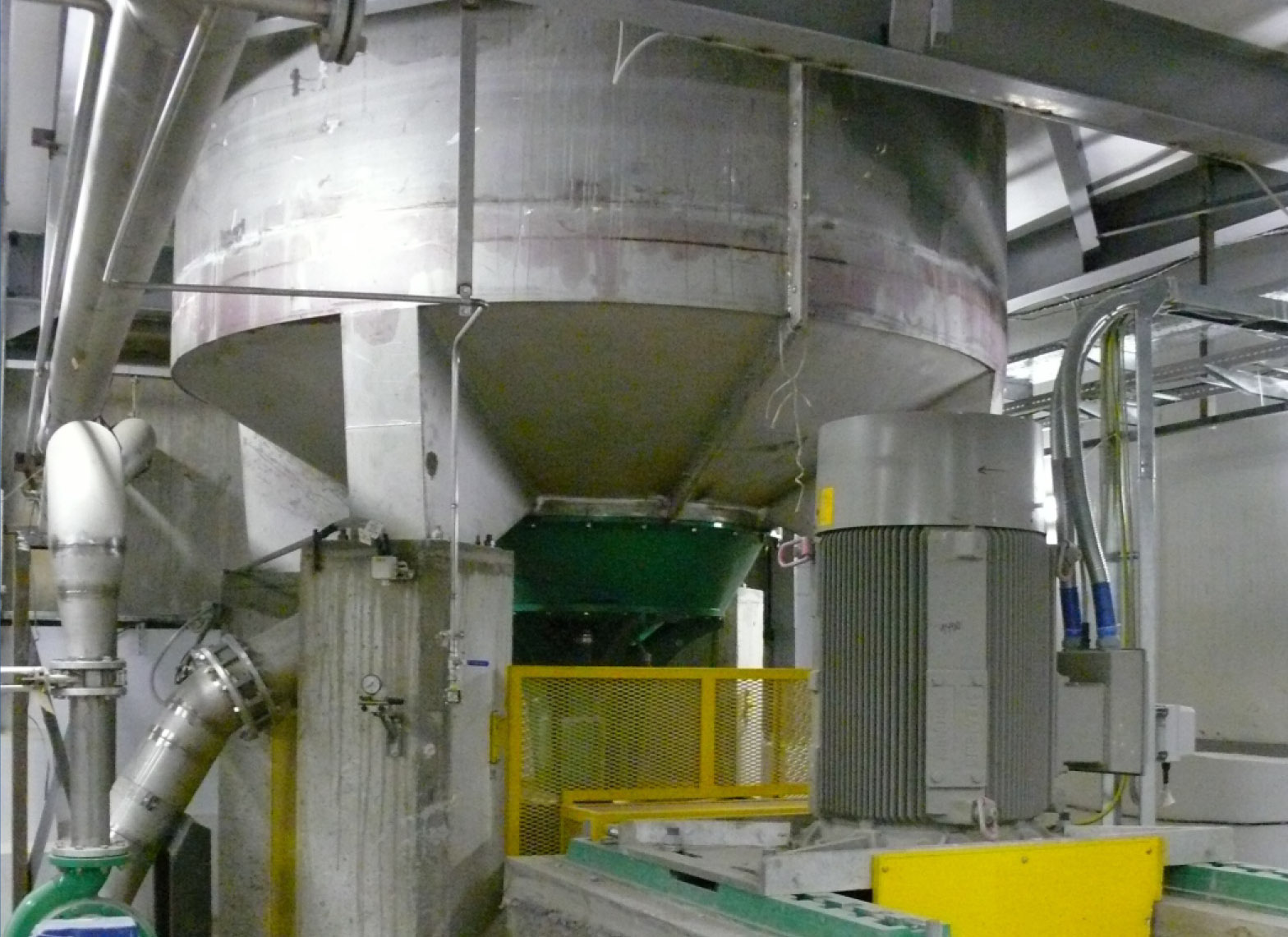

Low-consistency vertical pulpers LCV are designed for continuous and periodical pulping of fibrous materials, such as chemical pulp, ground wood, waste paper (incl. papers with increased wet strength), broke, mineral fibres, asbestos etc. LCV pulper is useful also for dissolution and dispersion of other materials, such as kaolin and for preparation of multicomponent suspensions. Its capacity depends on a particular sort of pulped material, way of operating and on the composition of operating cycle.

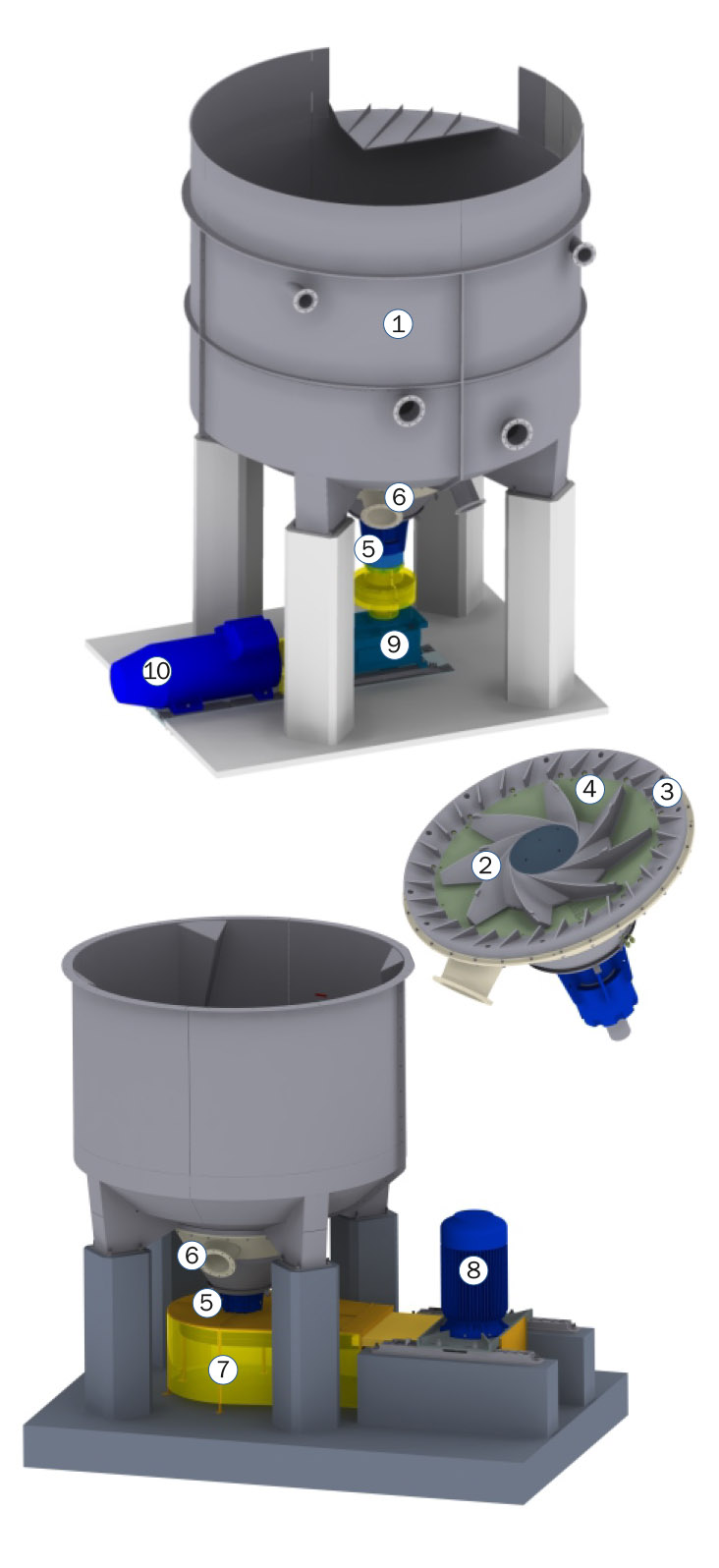

All pulper types are based on the same design. Individual types differ in the tank capacity, in the size of functional elements and in motor type. Pulpers form a complete performance family with capacities ranging up to 650 tpd.
LCV-XX-P
pulping of clean materials (chemical pulp)
LCV-XX-T
pulping of Tetrapak materials
LCV-XX-W
pulping of contaminated materials (waste paper)
LCV-XX-WD
pulping of contaminated materials (waste paper), Tetrapak
LC – for low-consistency pulping
HC – for medium-consistency pulping
Machine design and work safety are in compliance with the EU standards and EAC.
Technical parameters | |||||||||
---|---|---|---|---|---|---|---|---|---|

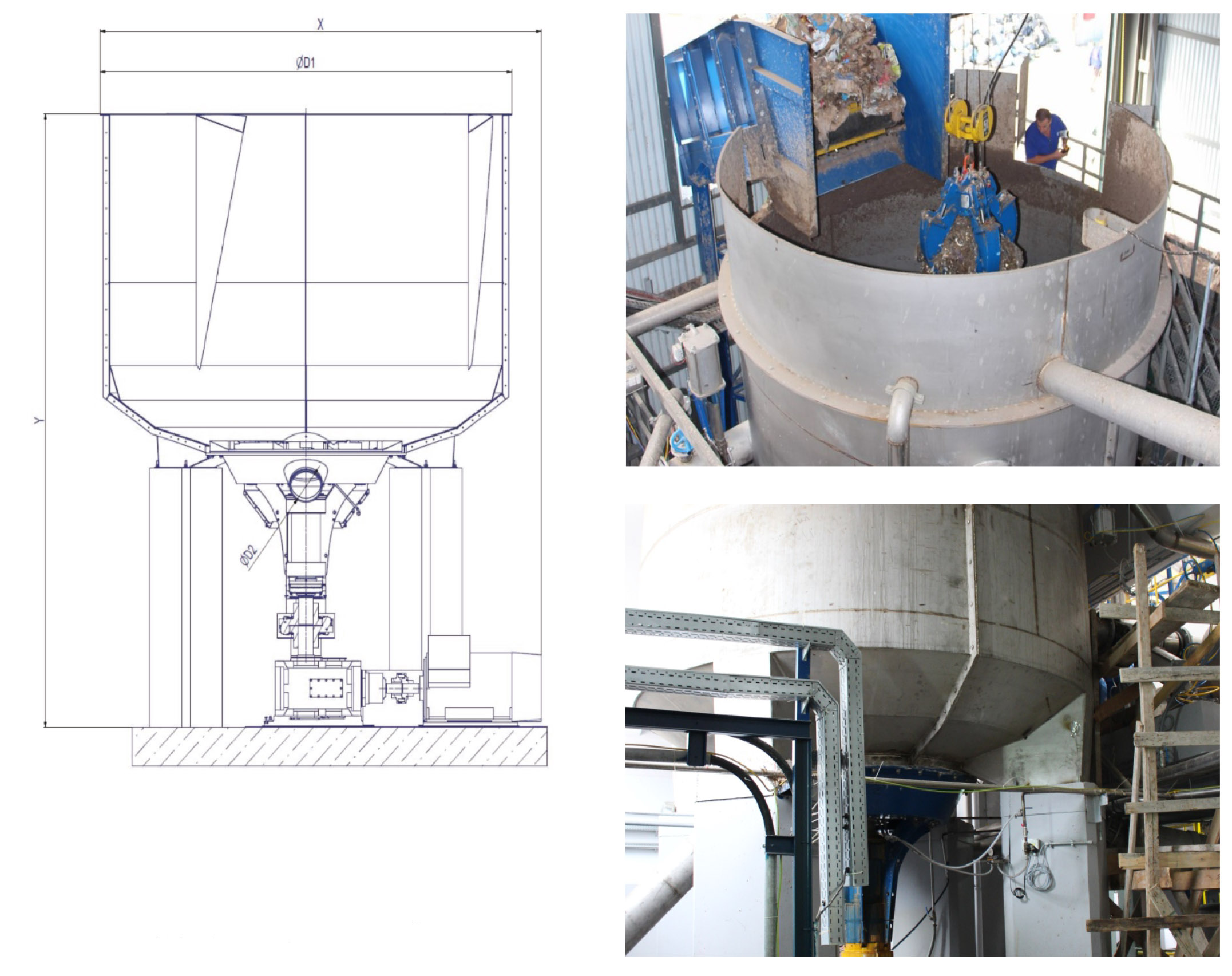

Tank type | Volume (m3) | ∅ D1 (mm) | ∅ D2 | Y (mm) | X (mm) | Periodical running Capacity *) (tpd) | Continuous running Capacity *) (tpd) | Motor output (kW) | Weight incl. drive (kg) |
BELT | |||||||||
LCV-2,5 | 2.5 | 1 812 | DN 150 | 2 932 | 2 931 | 5 - 20 | - | 55 | 2 680 |
LCV-6,5 | 6.5 | 2 620 | DN 200 | 3 475 | 3 860 | 15 - 55 | 50 - 75 | 75 | 2 575 |
LCV-14 | 14 | 3 392 | DN 250 | 4 450 | 5 131 | 25 - 95 | 110 - 150 | 132 / 160 | 7 190 |
LCV-20 | 20 | 4 052 | DN 300 | 5 100 | 5 976 | 35 - 120 | 190 - 240 | 200 / 250 | 10 500 |
LCV-30 | 30 | 4 452 | DN 300 | 6 200 | 5 292 | 50 - 180 | 230 - 320 | 250 / 315 | 12 300 |
GEARBOX | |||||||||
LCV-30 | 30 | 4 452 | DN 300 | 6 200 | 5 292 | 50 - 180 | 230 - 320 | 250 / 315 | 12 300 |
LCV-50 | 50 | 4 852 | DN 350 | 6 880 | 6 076 | 85 - 250 | 380 - 500 | 400 / 500 | 15 470 |
LCV-65 | 65 | 5 452 | DN 400 | 7 300 | 6 600 | 100 - 320 | 500 - 650 | 560 / 630 | 17 300 |
