High Capacity Pulping Node

High-capacity pulping node comprises a pulper LCV-65 working in a continuous mode. Spinning trash is removed from the LCV-65 during the operation by means of trash tail ragger SN-13 and trash tail cutter DZS-65. Other devices cleaning the pulper during the operation are two periodic separators PSN-40. Rejects leave the periodic separators towards a dewatering drum OBN-20 where they are flushed and dewatered.

The dewatering drum OBN-20 together with a self-cleaning trash rack placed in a pit below the drum enable draining rejects towards a reject dewatering press OLV- 600.

Design

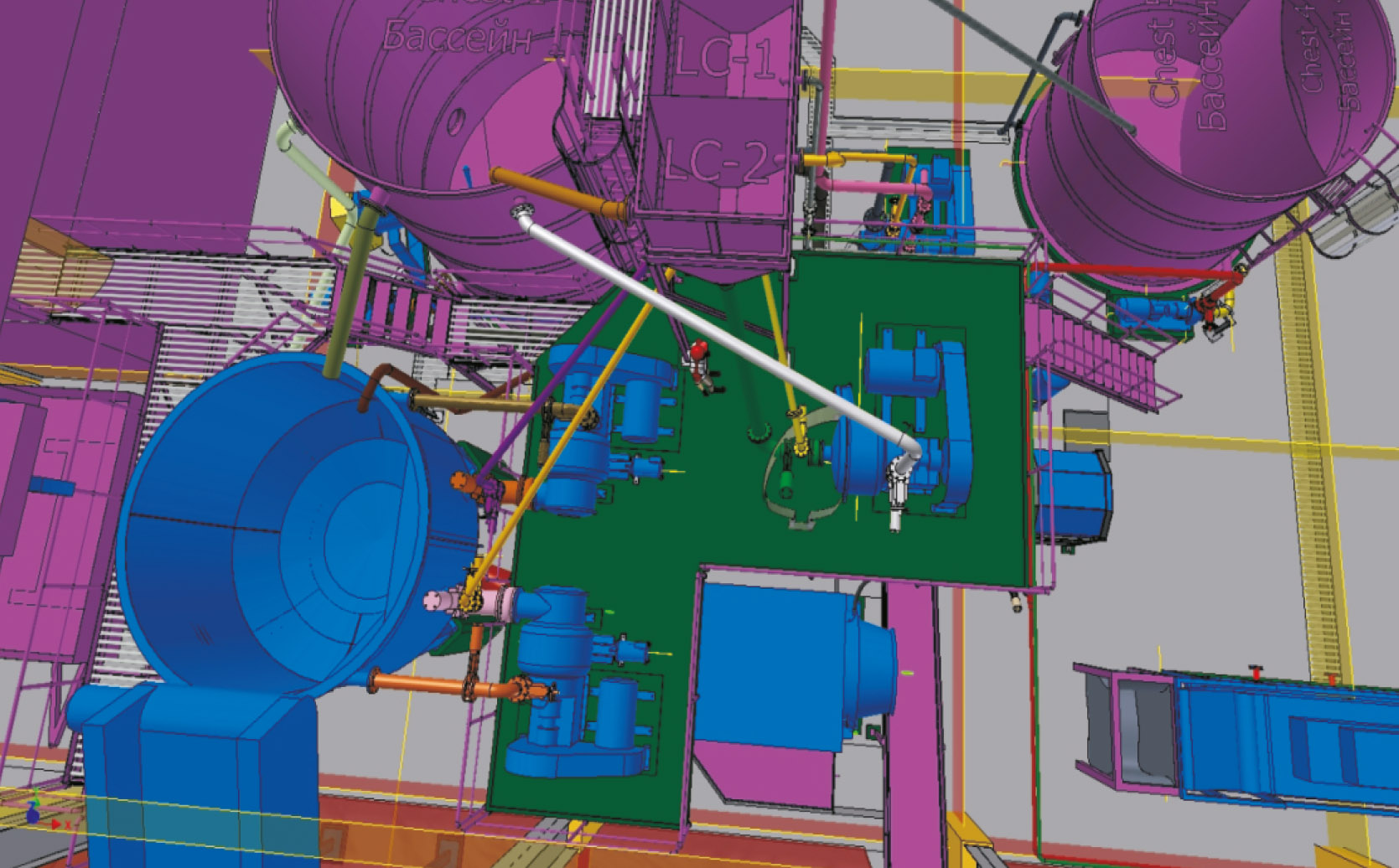

The final node layout depends on a required performance of the entire line (for example at a high raw material throughput and at the mentioned line performance 1 or 2 separators PSN-40 and 1 or 2 leaners VS-50 are supposed).

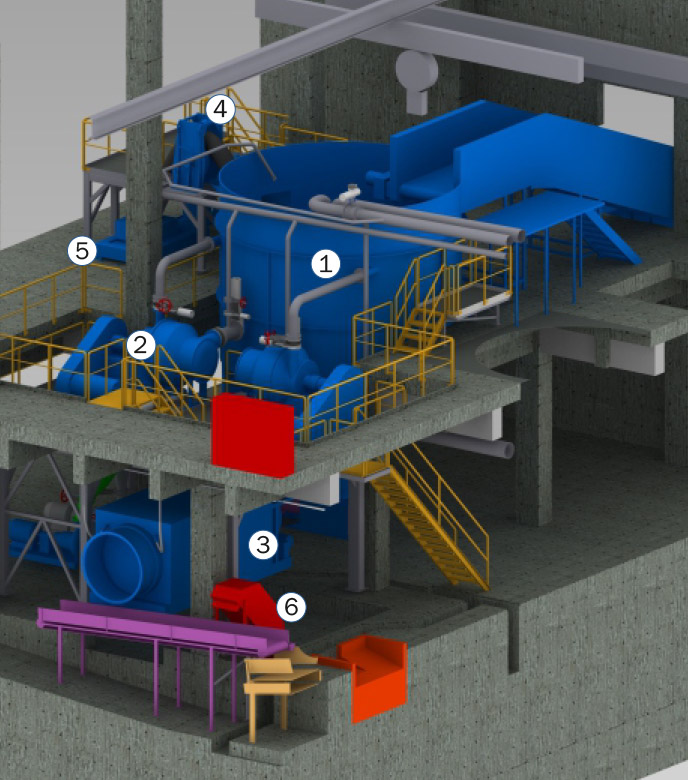

Main parts
  • Low-consistency vertical pulper LCV-65 (1)
  • Periodic separator of impurities PSN-40 (2)
  • Impurities dewatering drum OBN-20 (3)
  • Trash tail ragger SN-13 (4)
  • Trash tail cutter DZS-65 (5)
  • Self-cleaning trash rack (6)

Machine design and work safety are in compliance with the EU standards and EAC.

  • Category

    Cultural / Industrial
  • Length

    4 feet
  • Width

    12 feet
  • Height

    10 feet
  • Weight

    580 kg
  • Space Require

    14 sq. feet
