Dewatering Reject Separator

Dewatering reject separators RST wash, separate and dewater impurities from coarse and fine screening nodes. Separator parameters are given by the type and grade of waste paper pollution. The impurities enter the separator intermittently. The processing capacity depends on the reject input consistency and on the sort of mixtures. A retaining volume of the RST- 410 separator enables to supply 400 litres at once.

Design

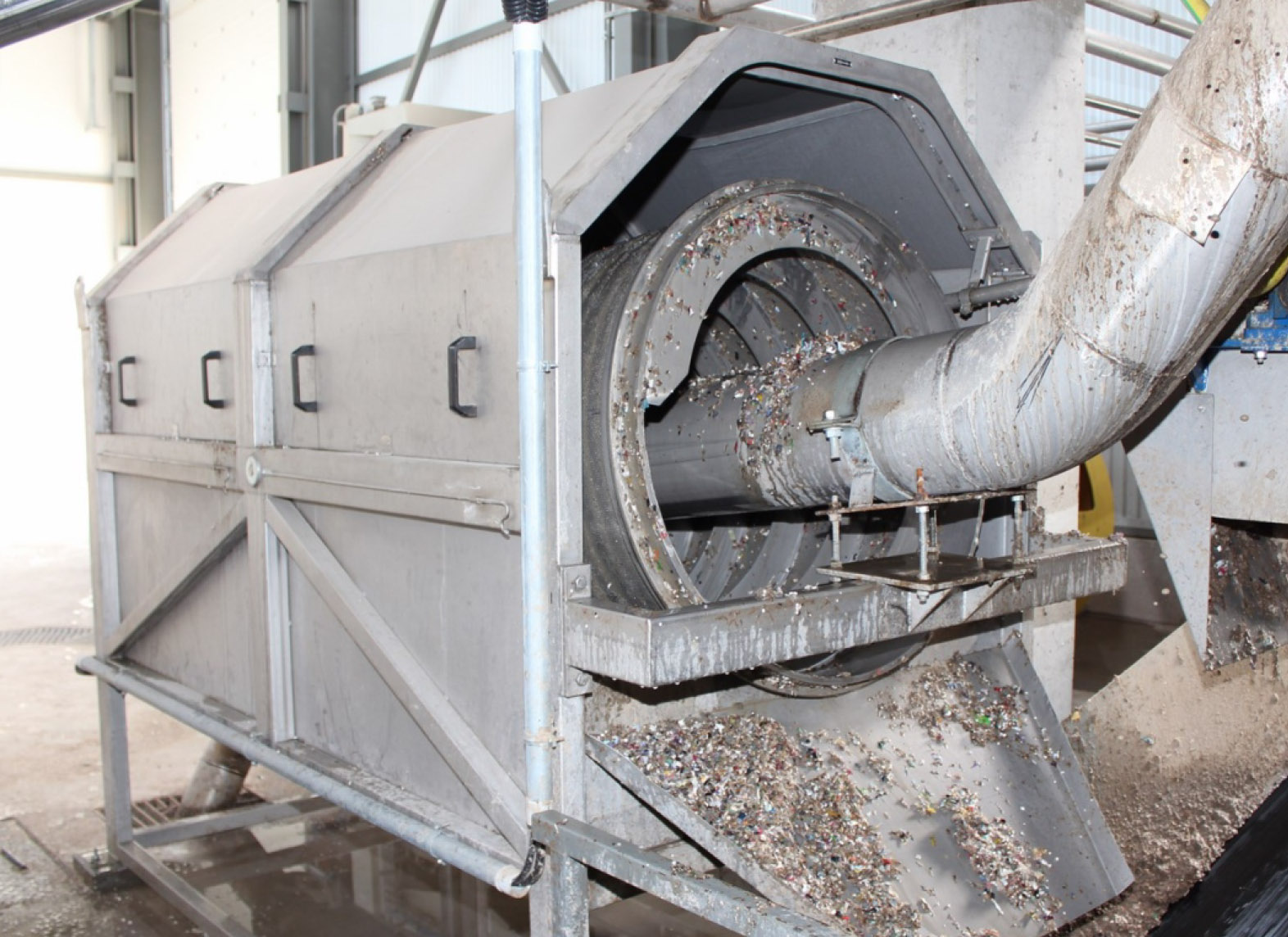

Input stock comes to the separator through a pipe leading into a perforated drum. The size of the drum openings depends on the sort of processed stock. After penetrating the drum openings, water is lead through a drainage pipe to a pit and from there it is pumped to a pulper. The machine is driven by an electric gearbox.

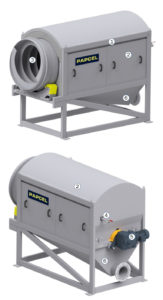

Main parts
  • Machine frame (1) with cover (2)
  • Dewatering perforated drum (3) put on pulleys
  • Shower tube (4) cleaning the perforated drum part
  • Electric gearbox (5)
  • Bottom (6)
Material
  • The delivered machine is made of stainless steel

Machine design and work safety are in compliance with the EU standards and EAC.

Advantages
  • Simple machine design
  • Low water and electricity consumption
  • Easy operation and maintenance
  • Minimum built-up area



  • Category

    Cultural / Industrial
  • Length

    4 feet
  • Width

    12 feet
  • Height

    10 feet
  • Weight

    580 kg
  • Space Require

    14 sq. feet
